| 多晶硅电池片 | | |
High photoelectric transformation efficiency, high reliability, low weaken, long life;
Advanced PECVD Technology make the dark blue film better distributed;
High quality silver paste results in solar cell contacts of high strength and low series resistance;
Each PV cell is inspected and checked for current reversion, micro cracks, chipping, warping, and any uneven thickness;
AMpv's inspected and checked cells are individually tested and grouped into over 24 performance classes within a tight 2% test accuracy.

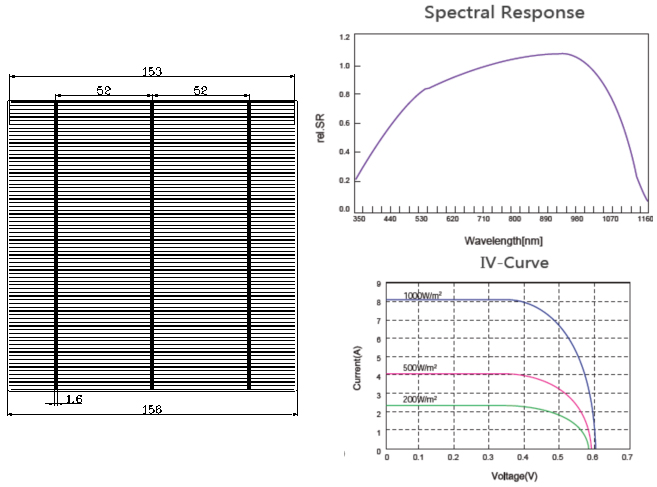

AM156P 156mm×156mm
Dimension：156mm×156mm±0.5mm
Thickness (Si)：200um±20um，180um±20um
Front：Blue silicon nitride antireflective coatings 1.6mm silver busbar
Back：Full-surface aluminum back-surface field 3.5mm silver continuous soldering pads.
|
|
Efficiency(%)
|
Pmpp(W)
|
Umpp(V)
|
Impp(A)
|
Voc(V)
|
Isc(A)
|
FF(%)
|
|
16.80-17.00
|
4.09
|
0.520
|
7.865
|
0.626
|
8.175
|
79.901
|
|
16.60-16.80
|
4.04
|
0.518
|
7.799
|
0.624
|
8.133
|
79.608
|
|
16.40-16.60
|
3.99
|
0.517
|
7.718
|
0.623
|
8.098
|
79.113
|
|
16.20-16.40
|
3.94
|
0.516
|
7.638
|
0.621
|
8.067
|
78.665
|
|
16.00-16.20
|
3.89
|
0.514
|
7.564
|
0.620
|
8.022
|
78.299
|
|
15.80-16.00
|
3.84
|
0.512
|
7.499
|
0.618
|
7.983
|
77.894
|
|
15.60-15.80
|
3.79
|
0.511
|
7.420
|
0.612
|
7.964
|
77.920
|
|
15.40-15.60
|
3.74
|
0.510
|
7.330
|
0.611
|
7.849
|
78.120
|
|
15.20-15.40
|
3.69
|
0.508
|
7.262
|
0.611
|
7.846
|
77.215
|
|
15.00-15.20
|
3.64
|
0.508
|
7.171
|
0.609
|
7.768
|
77.197
|
|
14.80-15.00
|
3.59
|
0.503
|
7.136
|
0.609
|
7.700
|
76.834
|
